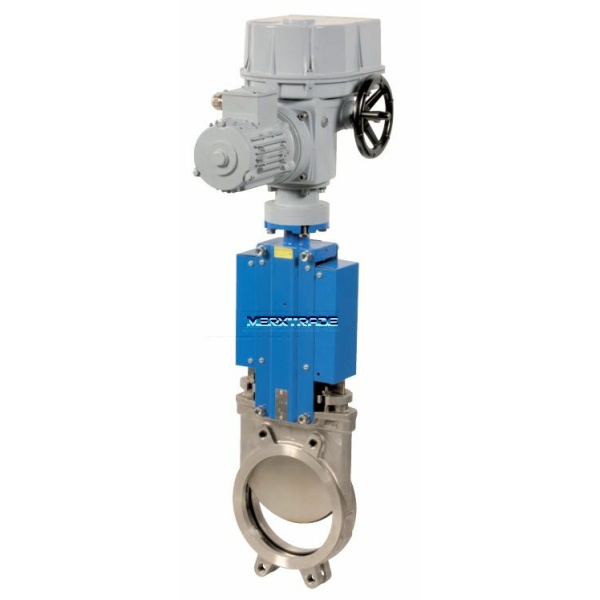

Knife gate valve electric actuated 230V AC IP67 DN150 Meskantafsl. metal seat Iron, on-off MT 230V

Knife gate valve electric actuated 230V AC IP67 DN150 Meskantafsl. metal seat Iron, on-off MT 230V

Beschrijving
Downloads

Model:	Knife valve	Size range	DN 50-300 mm
Disc type:	Gate UNI-Directionnal	Material body:	CF8M
Connection:	Wafer with bolt holes	Material disc:	Stainless steel 316
Operation:	Electric multi turn	Material seat:	Metal
Pressure rating:	DN50-200=10bar 250=8bar 300=6bar	Temperature:	0 °C / + 100 °C.
Flange connect	PN10	Actuator brand:	Regada
Actuation:	230V AC IP67	Safety overdrive:	Handwheel
Actuator model:	SO2=DN50-150 MO3=DN200-300	Protection rate:	IP67

Product Documents

Datasheet
