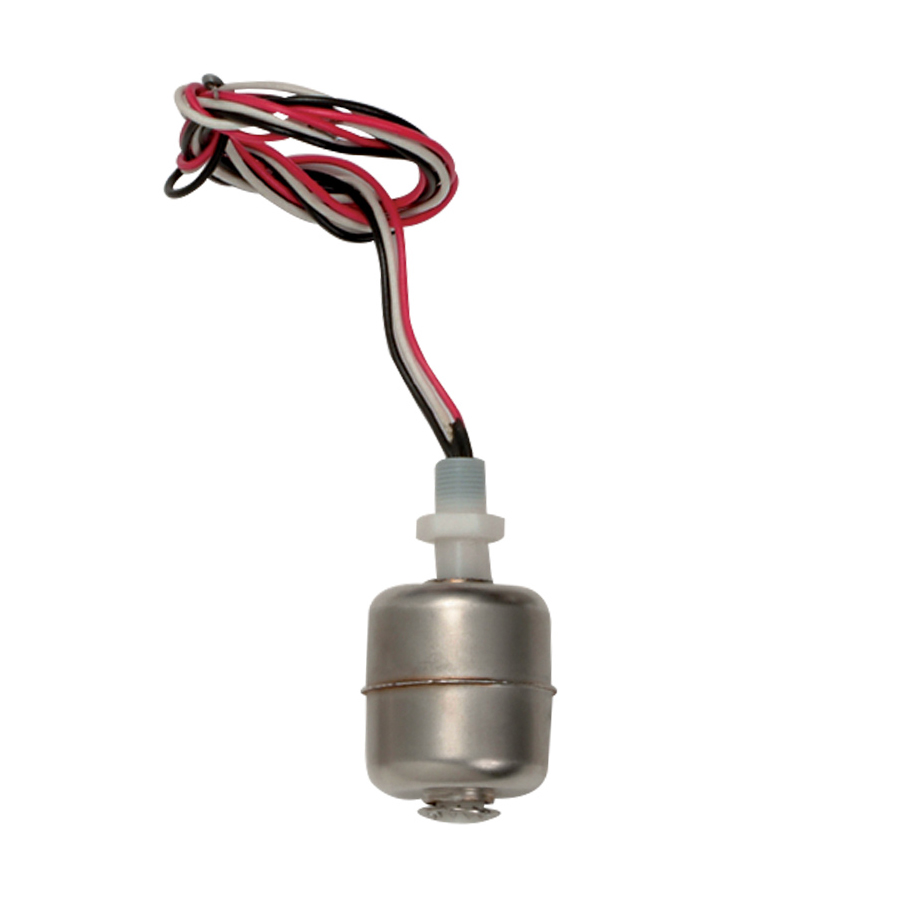

LEM6…A – Non-toxic level switches

Body material	Hostaform
Float material	Inox AISI 316
Actuation point	1 with NO – NC – SPDT contacts
Mounting	G1/8”
Electrical connection	Lead wires L. 500 mm (standard)
Switching capacity	NC contacts – 10W/VA / SPDT/NO contacts – 3W/VA
Current	NC contacts – 0.5A (resistive) / SPDT/NO contacts – 0.25A (resistive)
Voltage	NC contacts – 220V – 50Hz / SPDT/NO contacts – 175Vdc
Temperature range	-10°C +80°C
Max. pressure	5 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Size	LEM6CA – 65 mm / LEM6LA – 130 mm
