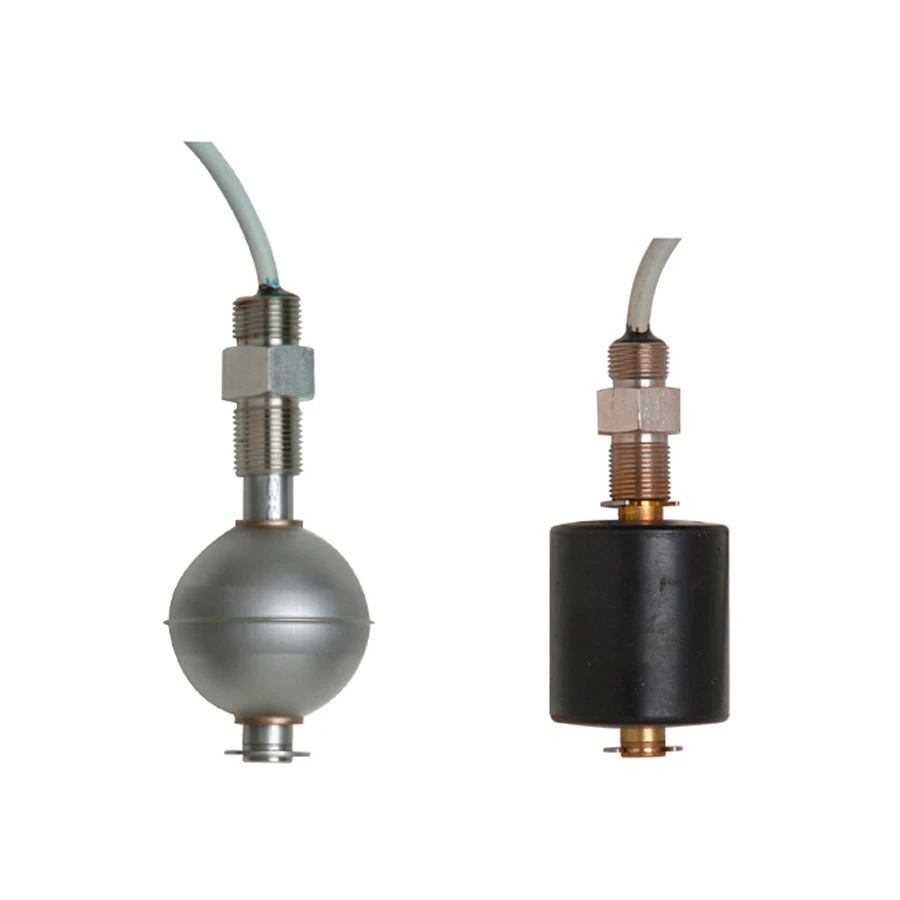

LM1 / LM2 / LMM1 GSA – GSIA – Level switches with stop ring

Body material	GSA – Brass / GSIA – Stainless steel AISI 316
Float material	GSA – NBR / GSIA – Stainless steel AISI 316
Mounting material	GSA – Brass / GSIA – Stainless steel AISI 316
Actuation point	LM1 – 1 actuation point NC/NO contact / LM2 – 1 actuation point SPDT contact / LMM1 – 2 actuation points/floats NC/NO contacts
Mounting	G3/8”
Electrical connection	Lead wires L. 500 mm (standard)
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1 – 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage	220V – 50Hz
Temperature range	-10°C +80°C
Max. pressure	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Size	Max. lenght 2500 mm
