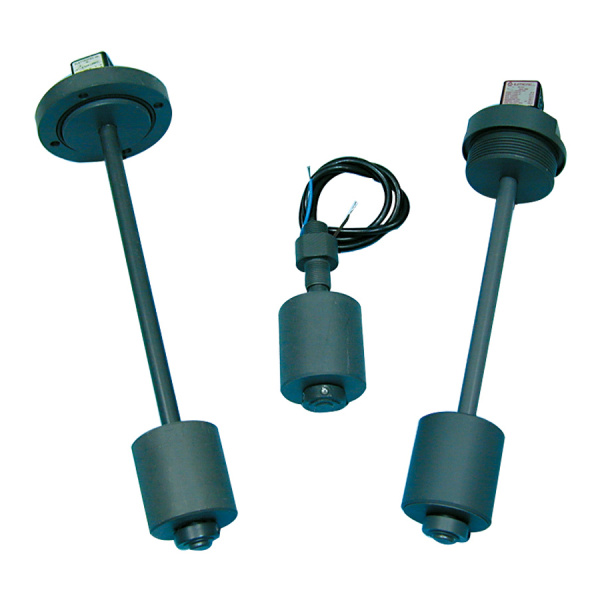

LM1 / LM2 / LMM1 GSPA – GPA – GTPA – PVC level switches

Body material	PVC
Float material	PVC
Mounting material	PVC
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Mounting	GSPA – Thread G3/8” / GPA – Flange Ø 92 / GTPA – Thread G2”
Electrical connection	GSPA – Lead wires L. 500 mm (standard) / GPA/GTPA – DIN 43650 – PG09 – IP65
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1- 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage	220V – 50Hz
Temperature range	-5°C +50°C
Max. pressure	5 bar
Fluid specific gravity	0.85 kg/dm³
Fluid viscosity	150 cSt
Size	Max. lenght 2500 mm
