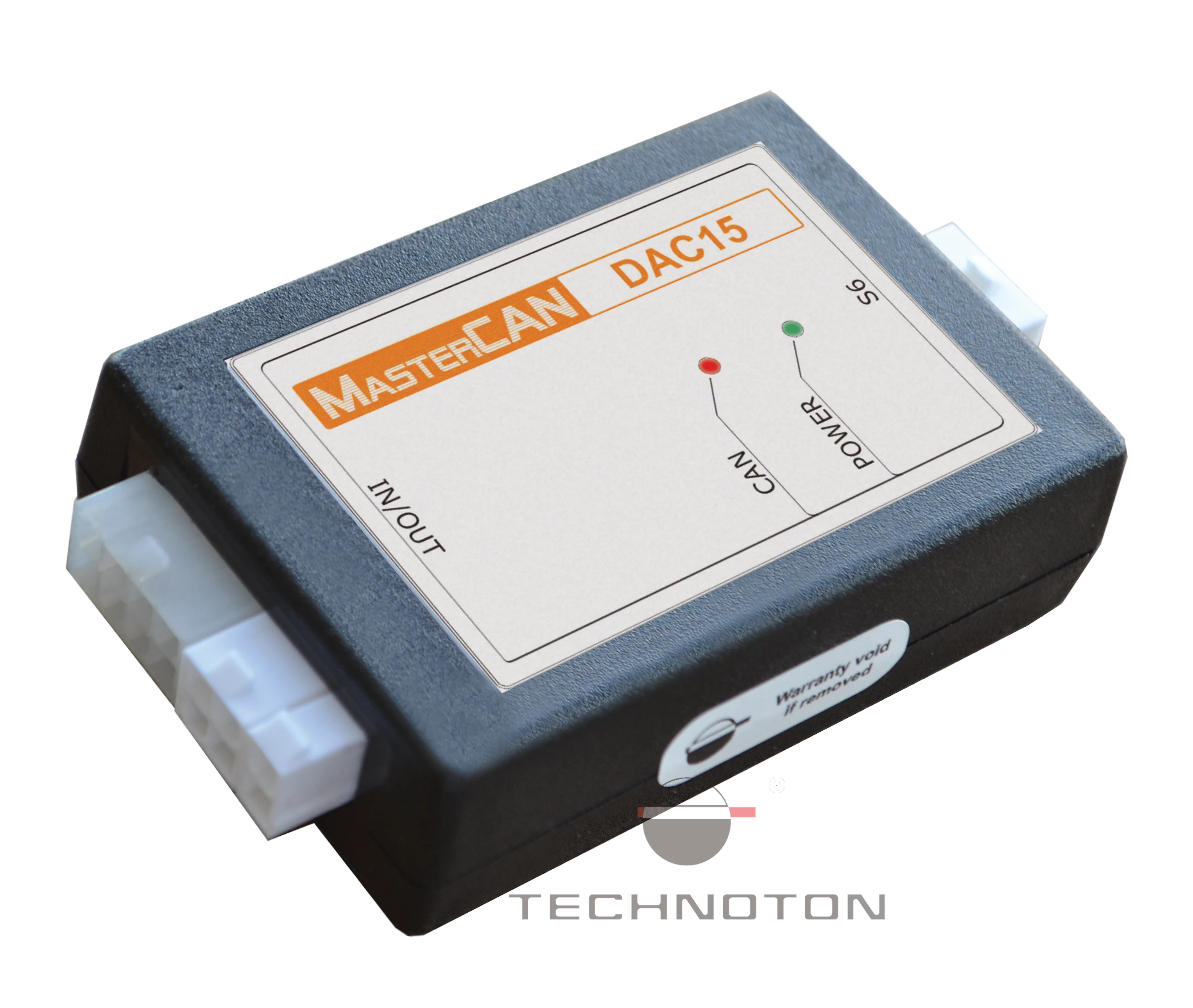

MasterCAN DAC15 - J1939 L/O module

Signaalomvormer met basisfunctionaliteit voor vrachtwagens en bussen, scheepsmotoren.

Analogue input	Value
Voltage, V	0.5…9
Frequency, kHz	0.01…10
Analogue output	Value
Voltage, V	0.5…9
Frequency, kHz	0.01…10
Pulse	amplitude 0.5…9 V duration 40…250 ms
Current, mA	4…20
Discrete 1, V	0 (level 0)/U^*_PS (level 1)
Discrete 2, V	0 (level 0)/10 (level 1)
Resistive, kOhm	0.015…50
^* U_PS— voltage of vehicle power supply source

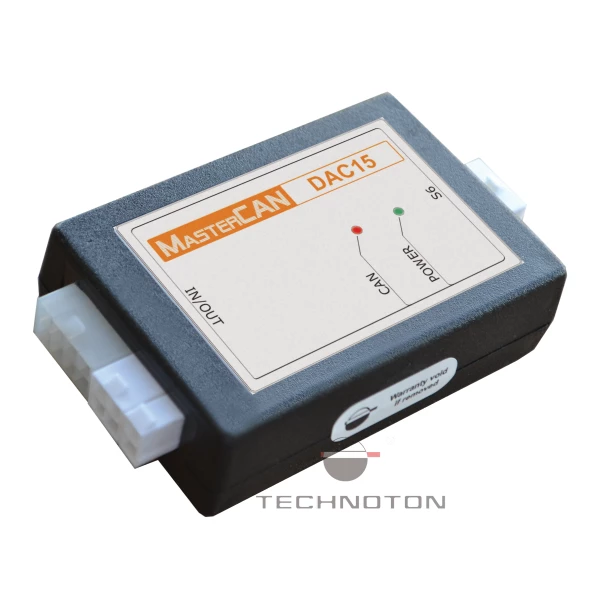

MasterCAN DAC15 – J1939 L/O module
