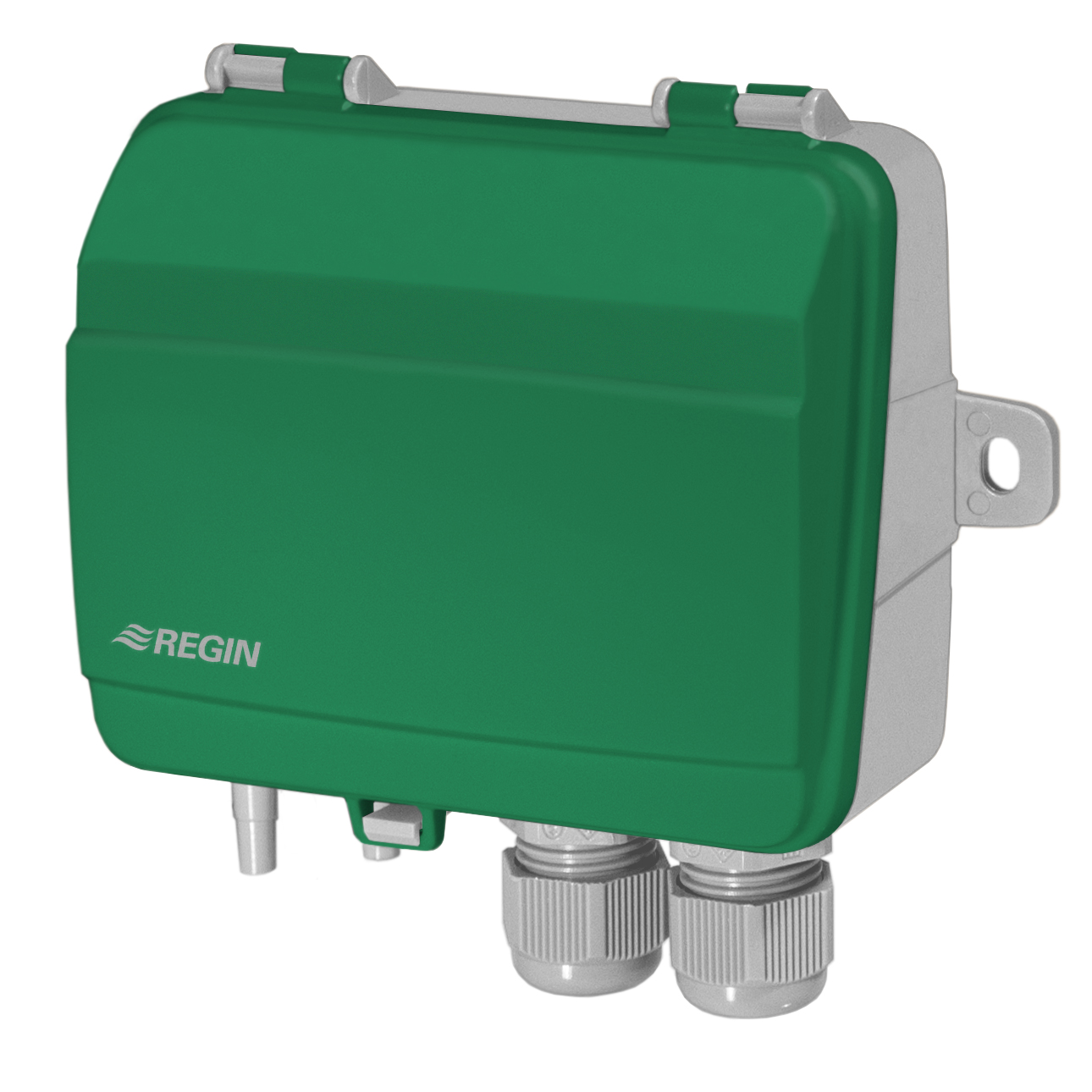

Name: PDT12C
SKU: PDT12C
Availability: InStock

Specificaties

Specificaties voor PDT12C
Power Supply	24VAC/DC (21…27 V AC 50Hz / 21…27 V DC), 2.0 VA
Dimensions, external (WxHxD)	120x40x112 mm
Supported protocols	Modbus
Max Overvoltage on any terminal	Max. ±18 V (referenced to GND) V
Analogue output load impedance 0…10v	Min. 10 kΩ
Pressure, range sensor	0…1250 Pa
Accuracy, pressure sensor 1	≤ 1 % full scale %
Max. allowed diff. Pressure sensor 1	25 kPa
Damping (electronic)	settable 1…12 s
Unit. Range l/s	0…31000
Unit. Range m3/h	0…65000 (factory setting)
Unit. Range CFM [Ft3/min]	0…65000

Specificaties voor Presigo (PDT…-C) – Differential pressure transmitters with communication
Protection class	IP54
Ambient humidity (non-condensing)	0…95 % RH
Mounting	Wall
Media	Air, non-combustible and non-aggressive gases
Universal inputs type (UI)	PT1000*, Ni1000 (6180 ppm/K), 0…10 V, Digital input
Pressure, range sensor	0…1250 Pa
Cable gland	M16x1,5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, housing	Polycarbonate (PC)
Material, cover	Polycarbonate (PC)
Material, base	Polycarbonate (PC)
Material cable	Polycarbonate (PC)

PDT12C
