- Q-Flow debietmeter met variabel oppervlak

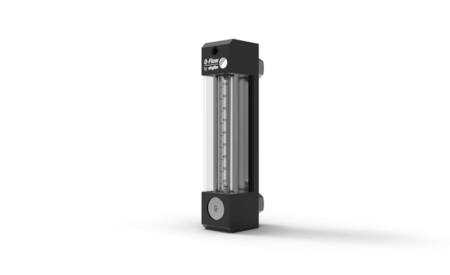

aluminium uitvoering, zonder klep - Q-Flow vlotterstroommeter

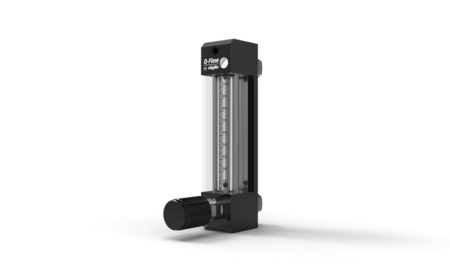

aluminium uitvoering, klep bij de ingang
De populariteit van flowmeters met variabel oppervlak voor de constructie van fabrieken en apparaten gaat onverminderd door. Talrijke voordelen overtuigen in de praktijk: voordelige aanschaf, eenvoudige installatie en bediening en onderhoudsvrij.
REASONABLE AND SECURE:

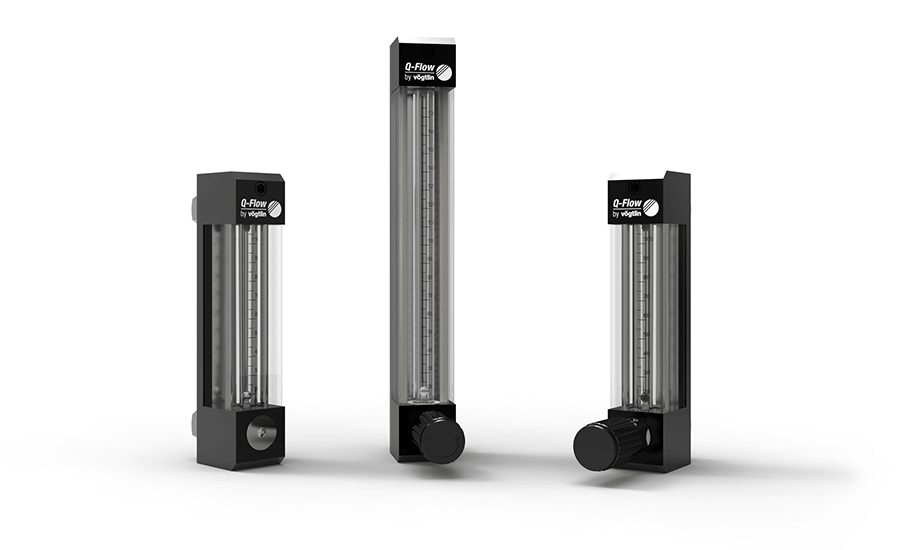

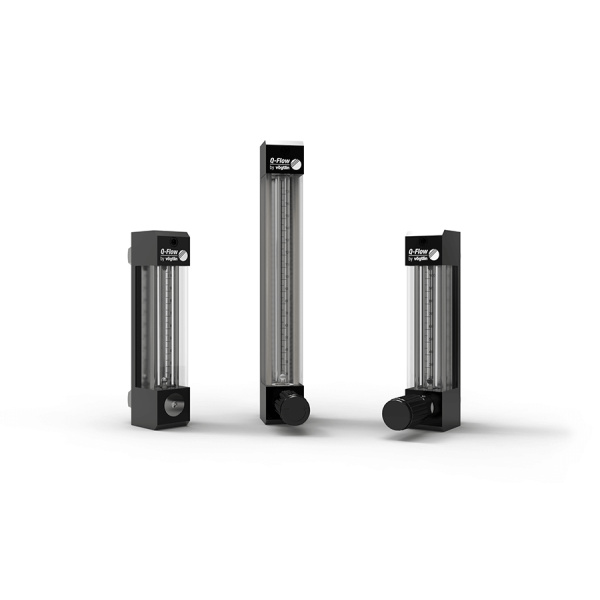

Variable Area Flowmeters
Q-Flow
| Media | Gases |
| Accuracy | +/- 5% of full scale |
| Turndown ratio | 1 : 10 |
| Measuring ranges | from 60 mln/min up to 50 ln/min |
| Insensitive to pressure | NO |
| Insensitive to temperature | NO |
| Scale | Direct reading or mm scale |
| Calibration | Air |
| Manual Valve | YES |
| Totalizer | NO |
| Alarm functions | NO |
| Display of Reading | Float in measuring glass |
| Mounting position | Vertical |
| Supply | Mechanical Device |
| Body Materials | Aluminum or stainless steel |
| Seals | FKM, EPDM or FFKM |
DIGITAL ADVANTAGE:
Battery powered Mass Flow Meters
red-y compact 2 series
| Media | Gases |
| Accuracy | +/- 1% of full scale |
| Turndown ratio | 1 : 100 |
| Measuring ranges | from 1 mln/min up to 450 ln/min (27 SCCM – 480 SLPM) |
| Insensitive to pressure | YES |
| Insensitive to temperature | YES |
| Scale | Direct reading |
| Calibration | Real Gas |
| Manual Valve | YES |
| Totalizer | YES |
| Alarm functions | Integrated |
| Display of Reading | Touch-Display with automatic screen position adjustment |
| Mounting position | Any position |
| Supply | Battery, Mirco-USB or 24 Vdc |
| Body Materials | Aluminum or stainless steel |
| Seals | FKM or EPDM |
