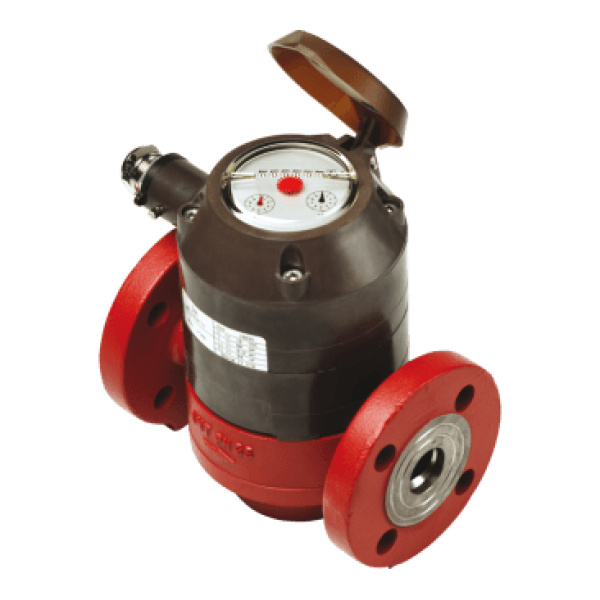

VZOA 20 Contoil Oil Meter – (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Max Temp 180C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser
Product Code: 92320
Specification
VZOA 20 FL 180/25-RV1
CONTOIL® oil meter VZOA 20 FL 180/25-RV 1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
Connection for flanges: DN 20 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1…20 mPa.s): 30…1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 0.5% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With RV Reed pulser integrated in register unit
Contact load max.: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
