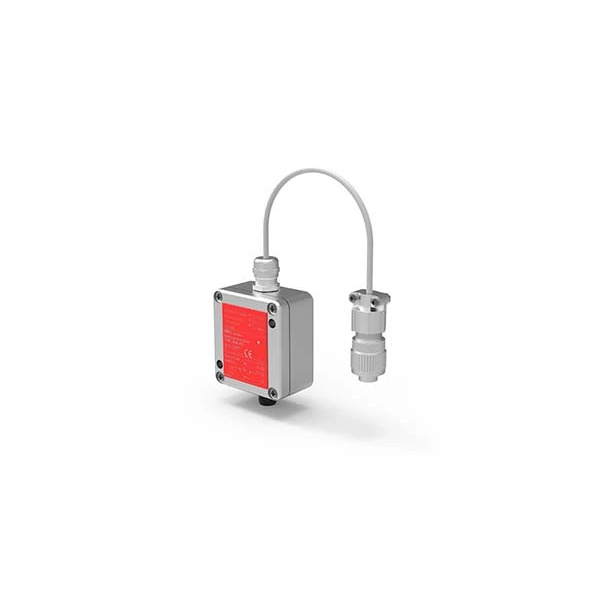

Local Converters (WIE) programmable and with interface - Afbeelding 2

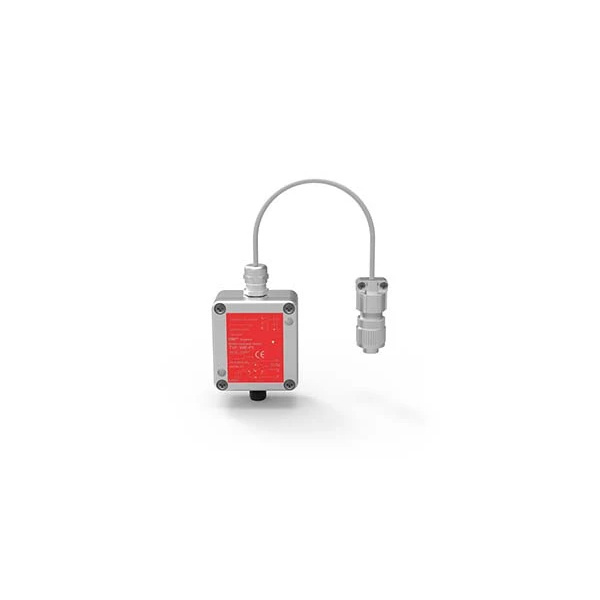

Local Converters (WIE) programmable and with interface - Afbeelding 3

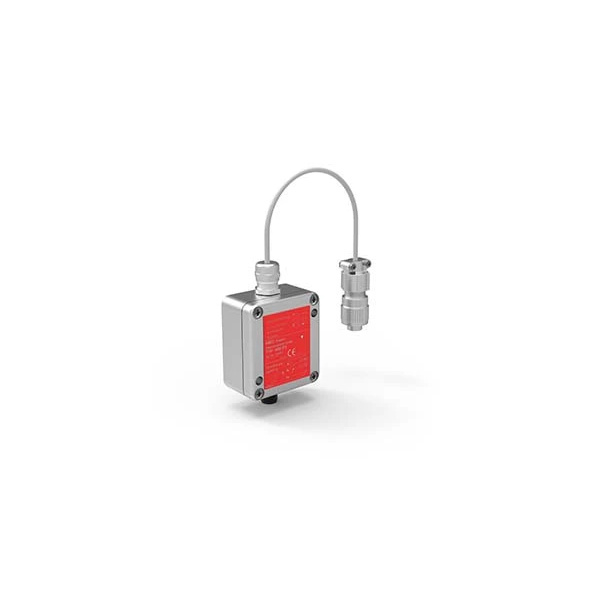

Local Converters (WIE) programmable and with interface - Afbeelding 4

Local Converters (WIE) programmable and with interface

De converters zijn passieve 4 – 20 mA sensoren met inductieve ingangstrap. Zowel de analoge als de frequentie-uitgang kunnen worden gelineariseerd met maximaal 10 punten.
De inductieve omvormers worden aanbevolen voor hogere medium temperaturen tot +350 °C [+662 °F].
De integrale interface en de KEM EasyControl software maken vrije programmering mogelijk.

Output Signal4 – 20 mA, 2-wire (passive)

Supply Voltage12 – 30 V, regulated

Frequence Range1 up to 5,000 Hz depending on flow meter

Allowable Load20 mA, max. 800 Ω

Response Time250 ms (for input frequencies > 7 Hz)

Ambient Temperature-40 °C up to +70 °C [-40 °F up to +158 °F]

Medium Temperature-20 °C up to +350 °C [-4 °F up to +662 °F]



Product Documents

Datasheet
