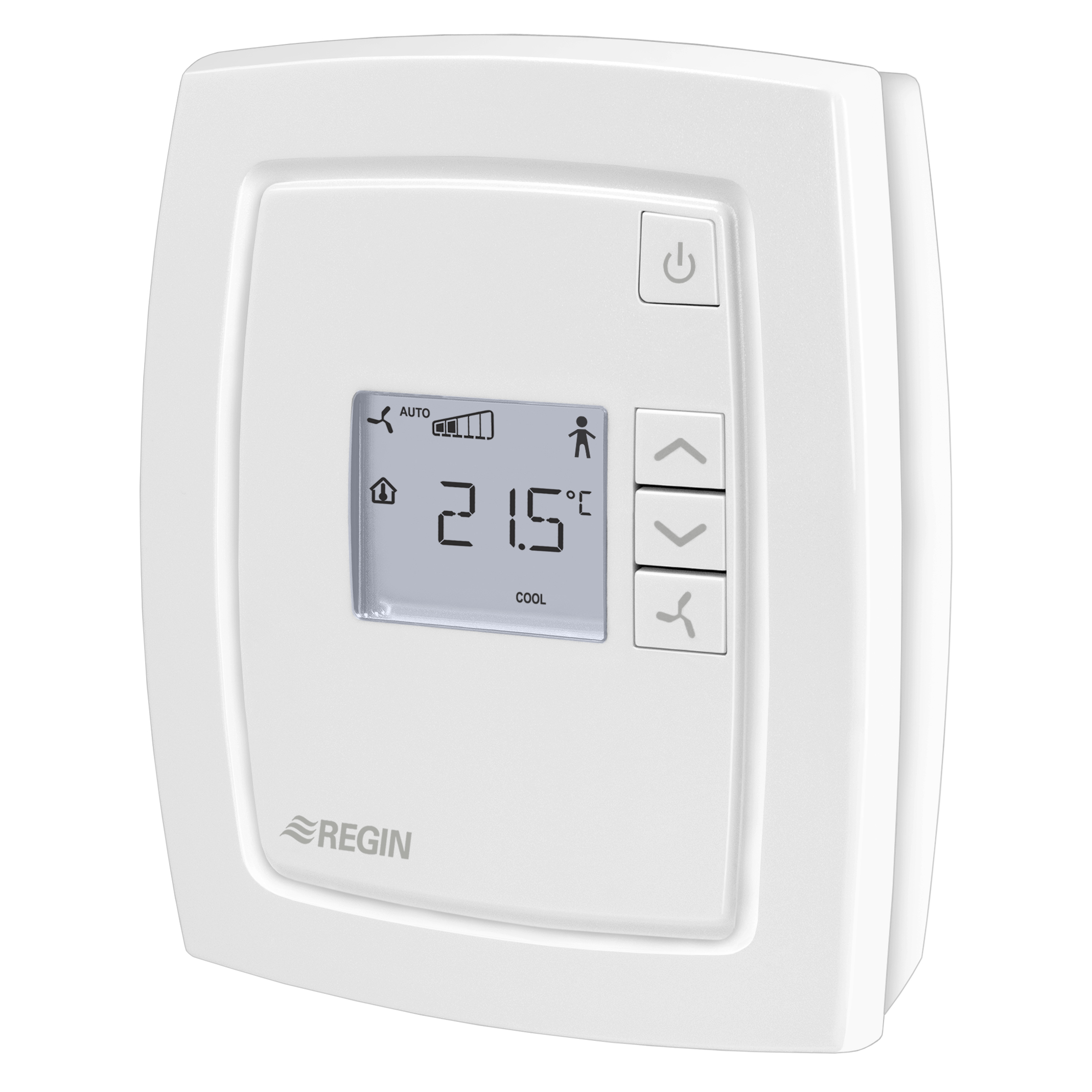

RCF-230CD

Fan-coil thermostat with communication via RS485 (Modbus, BACnet or EXOline)

Specificaties

Specificaties voor RCF-230CD
Controller Type Room Control
Power Supply 230 V AC
Mounting Wall mount
Display Yes
Supported protocols EXOline, Modbus, BACnet
Port type RS-485
Power Supply 230VAC (207…253 V AC 50/60Hz / ), 3.0 VA
Dimensions, external (WxHxD) 102x120x29 mm
Supported protocols EXOline, Modbus, BACnet
AI 1
UI 1
DI 1
DO 5
Colour, cover RAL9003
Change-over Automatic Yes
Outputs On/Off Valves Yes
Outputs Thermal/3 point No
Outputs 0…10V No
Specificaties voor Fan-coil thermostat with on/off outputs
Protection class IP20
Ambient humidity (non-condensing) 0…90 % RH
Storage temperature -20…70 °C
Mounting Room
Weight, incl. packaging 0.18 kg
Analogue inputs type (AI) PT1000
Digital inputs type (DI) Potential-free contact
Digital outputs type (DO) 3 Relay 230VAC/3A, 2 Triac 23VAC 300mA
Universal inputs type (UI) PT1000 / DI
Accuracy, temperature 1 ±0.5 °K @ 15…30 °C
Material, housing Polycarbonate, PC
