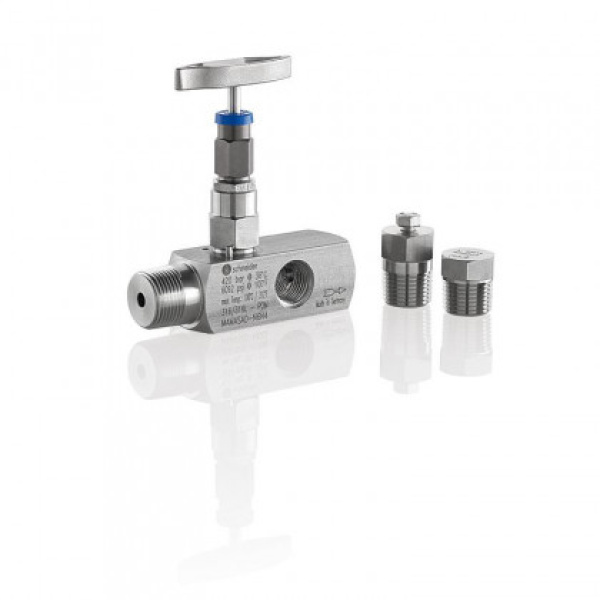

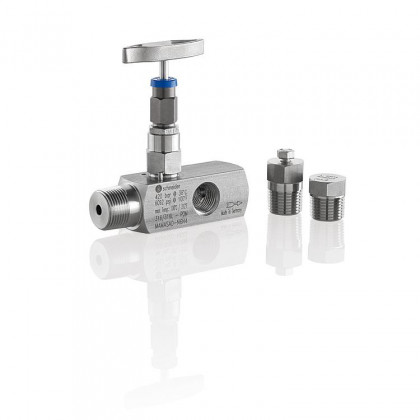

Soft Seated Multiport Gauge Valves M types

AS-Schneider E Series Soft Seated Multiport Gauge Valves M types are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard typess are provided with 3 female outlet ports and are therefore suitable for vertical or horizontal installations.

Bore Size: 1/4″ (6.35 mm)

The valves are fully roddable due to the Cone Design Valve Seat.

Part No.: MAMASAD-N4N4

M Multiport Gauge Valve
A Basic Design: Stanndard – 1/4″ Bore Size (6.35 mm)
M Inlet: Male Thread
A Outlet: 3x Female Thread
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
D Seat Material: POM
–
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
