F Series Manifolds & Multi-Way Cocks
3 Valve Manifolds Without Test Connection

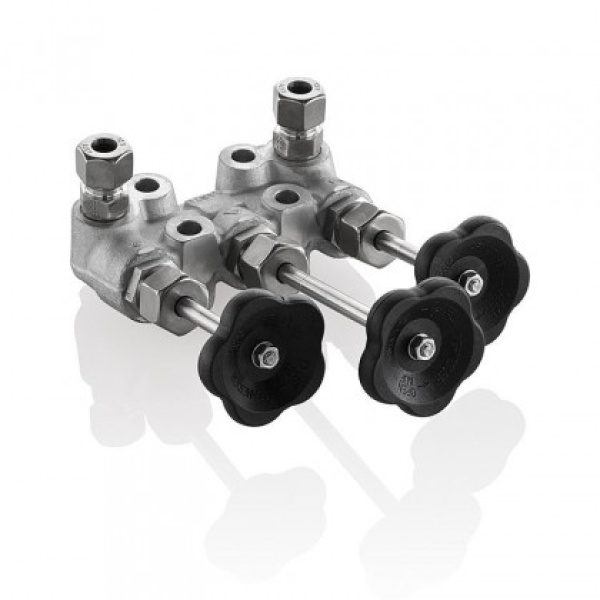

AS-Schneider F Series 3 Valve Manifolds are designed, manufactured and tested with respect to the relevant standards applicable in this field. The manifolds are for direct mounting according to DIN EN 61518 (IEC 61518). The standard inlet connections are G 3/8 female threaded with fitted tube fittings or butt weld ends. The below mentioned manifolds have no test ports.
The manifolds are provided, as standard, with internal stem threads.
Bore Size: 0.197" (5 mm) or 0.315" (8 mm)
Productvariaties
| Inlet | Outlet | Bore Size DN (mm) | Material | Part Number 1a | Part Number 1b | Offerte | |
|---|---|---|---|---|---|---|---|
| Handwheel operated | |||||||
| Tube Fitting Size 12S | IEC 61518 Type A | 5 | 1.0460 | S541.36.123 | S54136123 | ||
| Tube Fitting Size 12S | IEC 61518 Type A | 5 | 1.4571 | S541.36.223 | S54136223 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 5 | 1.0460 | S541.36.133 | S54136133 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 5 | 1.4571 | S541.36.233 | S54136233 | ||
| T Bar Key operated | |||||||
| Tube Fitting Size 12S | IEC 61518 Type A | 5 | 1.0460 | S541.36.125 | S54136125 | ||
| Tube Fitting Size 12S | IEC 61518 Type A | 5 | 1.4571 | S541.36.225 | S54136225 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 5 | 1.0460 | S541.36.135 | S54136135 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 5 | 1.4571 | S541.36.235 | S54136235 | ||
| Tube Fitting Size 12S | IEC 61518 Type A | 8 | 1.0460 | N541.86.106.01 | N5418610601 | ||
| Tube Fitting Size 12S | IEC 61518 Type A | 8 | 1.4571 | N541.86.206.01 | N5418620601 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 8 | 1.0460 | N541.86.135.01 | N5418613501 | ||
| Tube Butt Weld End Ø 14 x 2.5 | IEC 61518 Type A | 8 | 1.4571 | N541.86.235.01 | N5418623501 |
