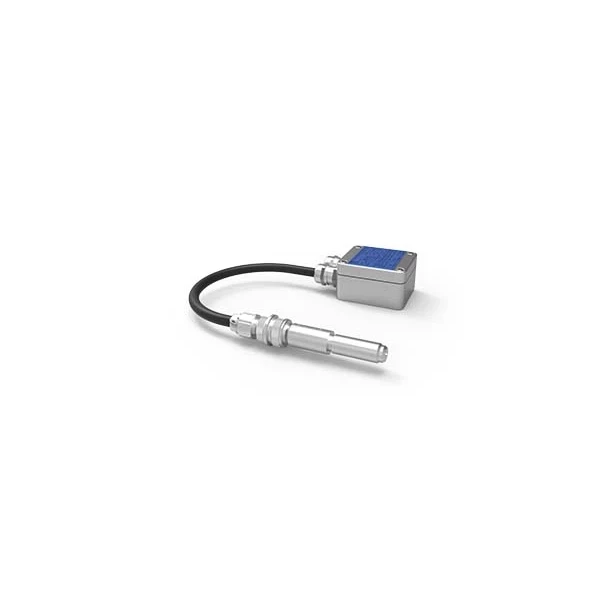

Inductive Pickups and Amplifiers (IF und VIEG) - extreme medium temperatures

Inductive Pickups and Amplifiers (IF und VIEG) – extreme medium temperatures

Supply VoltageUB: +7 up to 29 V DC

Quiescent CurrentIR < 4 mA Frequence Range: 7 up to 3,000 Hz depending on flow meter

Ambient Temperature-40 °C up to +80 °C [-40 °F up to +176 °F]

Medium Temperaturemax. +350 °C [+662 °F] depending on IF sensor

Output Signalfrequency output (various modes)

Ex ProtectionII 2G EEx ia IIC T4-T6

Inductieve pulsversterkers van de serie IF zijn bijzonder geschikt voor meetcellen in aluminium behuizing en toepassingen met hoge temperaturen (-196 °C tot +350 °C [320,8 °F tot +662 °F]). Voor alle andere toepassingen bevelen wij de draagfrequentieomvormers van de VTE-serie aan.
De inductieve pulsversterker detecteert de r.p.m. van KEM-flowmeters. Elk passeren van een tand wordt contactloos gedetecteerd en produceert een puls aan de uitgang. Daarom komt elke puls overeen met een vast volume en komt de frequentie overeen met de volumestroom.
De pick-up wordt in de meter geschroefd via een schroefdraad M14×1,5 (optie UNF ½”-20). Dienovereenkomstig passen de IF en VIEG op alle KEM-meetcellen.
